PremiumLine Adjustable Body safety shower for flush-mounted ceiling mounting
The B-SAFETY PremiumLine series body safety showers are made of stainless steel and are suitable for use in laboratories and research facilities as well as for harsh industrial environments. The polished stainless steel surface is not only resistant to many chemicals but also offers a modern design for laboratories and cleanrooms.
Or call us directly at: +49 40 538 092 70
(Mo – Thu from 8 a.m. to 5 p.m. and Fri from 8 a.m. to 14 p.m.)
• EN-15154-1:2025
• EN 15154-5:2019
• ANSI Z358.1-2014
• DIN-DVGW, DVGW, NW-0416CL0425
Technical specifications
| Mounting type | Flush-Mount Ceiling Installation |
|---|---|
| Material | Stainless steel |
| Colour | silver-gray |
| Height (mm) | 760 – 1660 |
| Width (mm) | 172 |
| Length/Depth (mm) | 65 |
| Weight (kg) | variable |
| Operating pressure (bar) | 1,5 – 3,0 |
| Volume flow (l/min) | 50 ±10% tolerance |
| Water connection | 3/4″ male |
More about this product
Product description
The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and EN 15154, but is also self-draining, largely scale-free and maintenance-free, as well as very robust and corrosion-resistant. The limited, even, and above all gentle water stream is optimized for rinsing chemicals off the skin.
The built-in automatic flow regulator ensures a standard-compliant spray pattern regardless of the on-site water pressure. The included information sign, which complies with EN ISO 7010 and ASR A1.3, identifies the B-SAFETY Safety shower and improves its visibility. The visibility distance is 15 meters.
Technical Description

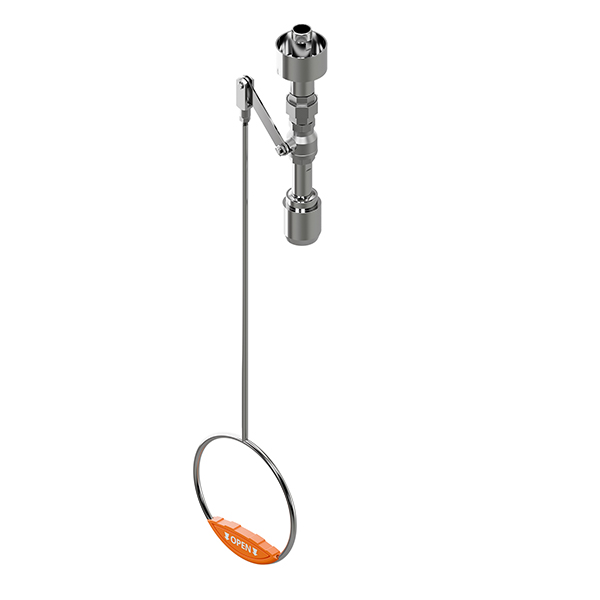

- 3/4-inch stainless steel connecting tube, polished, length 75 mm, 3/4″ male water inlet
- Polyamide push-fit rosette for covering the installation connection
- 3/4-inch stainless steel screw connection with conical seal, designed for simplified on-site installation
- 3/4-inch stainless steel ball valve, with Pull rod actuation, DIN-DVGW tested and approved
- Pull rod with ring handle made of stainless steel, polished, adjustable length (min. 860 mm – max. 1660 mm)
- Plastic recessed handle, orange, with “OPEN” label, photoluminescent compliant with DIN 67510
- 3/4-inch stainless steel ceiling shower arm, polished, adjustable height as specified (min. 460 mm – max. 1260 mm)
- Integrated automatic flow regulator, 50 liters per minute with a tolerance of +/-10%, for a standard-compliant spray pattern at a specified operating range of 1.5 to 3 bar flow pressure
- High-performance stainless steel shower head, polished, with an improved spray pattern, corrosion-resistant, virtually limescale- and maintenance-free, very durable, self-draining
- Information sign for a body safety shower in accordance with EN ISO 7010 and ASR A1.3, self-adhesive PVC film, dimensions 150 x 150 mm, visibility distance 15 meters
- Installation height according to EN-15154-1:2025: Lower edge of high-performance shower head 2200 mm (± 100 mm) above the floor
- in accordance with BGI/GUV-I 850-0, DIN 1988, and EN 1717
- in accordance with ANSI Z358.1-2014, EN-15154-1:2025, and EN 15154-5:2019
- DIN-DVGW tested and certificated
